Induced Polarization Transmitters

Reliable and robust, the GDD IP Transmitters (models TxIII, TxII and Tx4) are used over the world for apparent resistivity and time-domain induced polarization (IP) surveys and drilling.

Buy or rent this Instrument

Features

• Resistivity and time domain IP survey
• User friendly and robust
• Shock resistant and environmentally sealed
• Protection against short circuits even at zero (0) ohms
• Displays electrode contact, transmitting power and current
• Applications: mining exploration, groundwater exploration, geotechnical investigations and other related fields

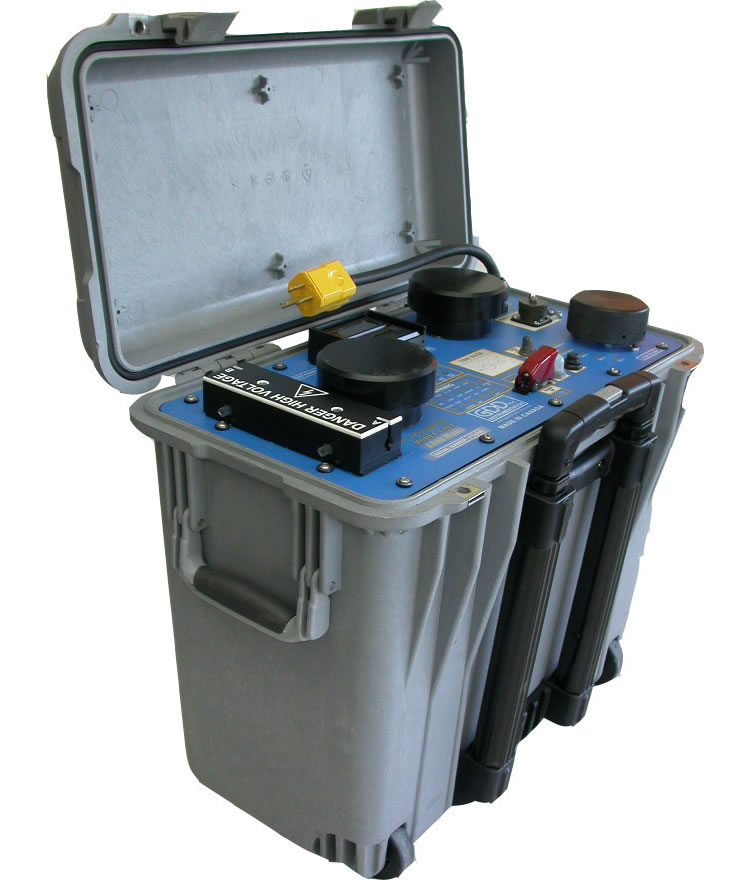

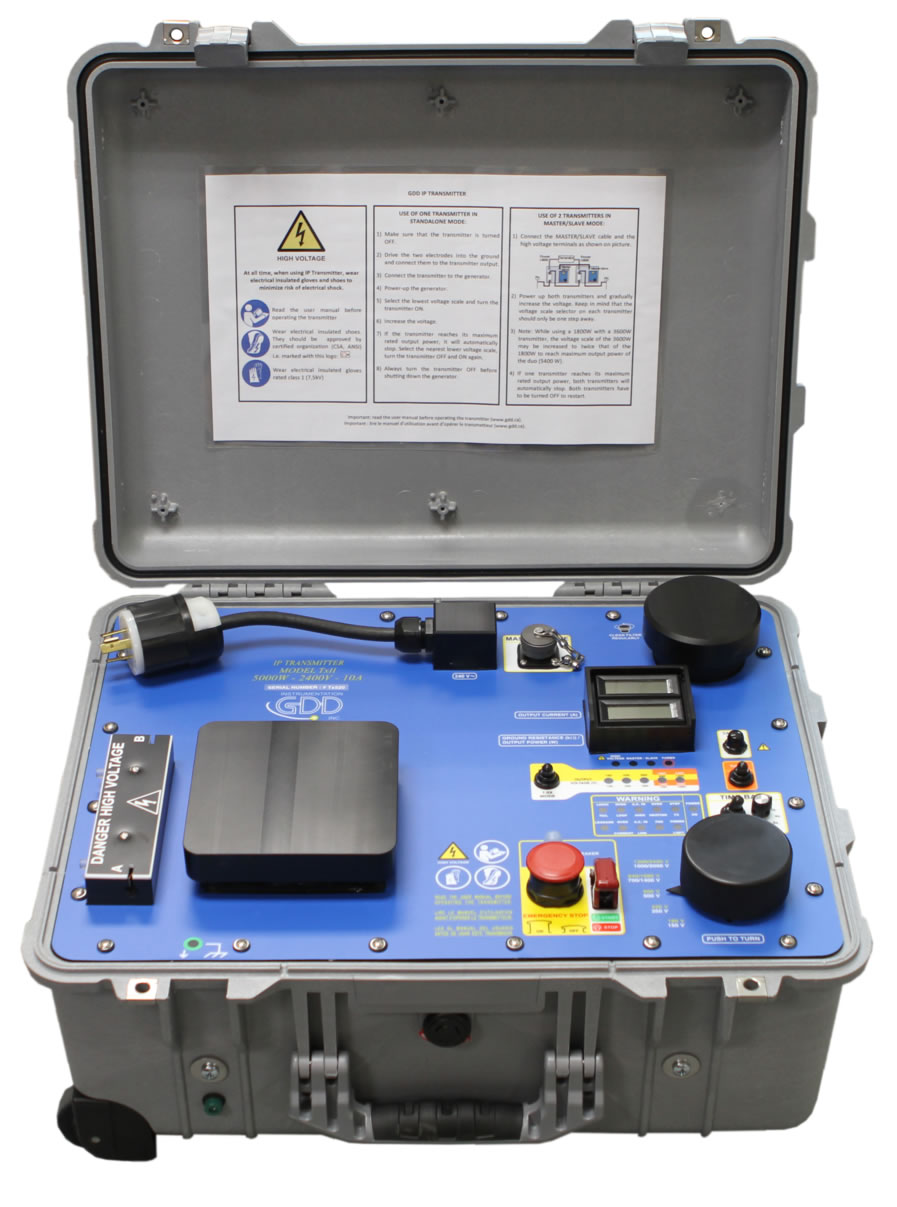

	Model TxIII	Model TxII	Model Tx4
	1800W-2400V-10A	3600W-2400V-15A	5000W-2400V-20A
Master-Slave configuration (2 Transmitters)	3600W-4800V-10A	7200W-4800V-15A	10000W-4800V-20A
Specifications (per Transmitter)
Total weight (including accessories and shipping box)	39 kg	44 kg	58 kg
Weight (transmitter only)	27 kg	32 kg	40 kg
Total dimension (including accessories and shipping box)	56 x 36 x 56 cm	28 x 49 x 70 cm	34 x 52 x 76 cm
Operating temperature	-40° C to +65° C (-40° F to +150° F)
Electrical characteristics
Time base	Time domain: ON+, OFF, ON-, OFF Time base: DC, 1, 2, 4, 8 et 16 seconds
Output current	0.030A to 20A (standard operation) 0.0A to 20A (Open Loop protection disabled)
DC mode	Maximum of 5A
Output voltage	150V to 2400V / 14 voltage scales
Master-Slave configuration	Ability to link 2 GDD IP Transmitters of 3,600W or 5,000W to double power (7,200W or 10,000W) and the output voltage up to 4,800V
LCD display	- Output current 0.001A resolution - Output power - Ground resistance (when the transmitter is turned off, but plugged to the generator)
Power source	Standard 110-120V / 50-60Hz (optional : 220-240V / 50-60Hz)	Standard 220-240V / 50-60Hz

Optional accessories

• Wire roll
• Electrode

Continuous improvement

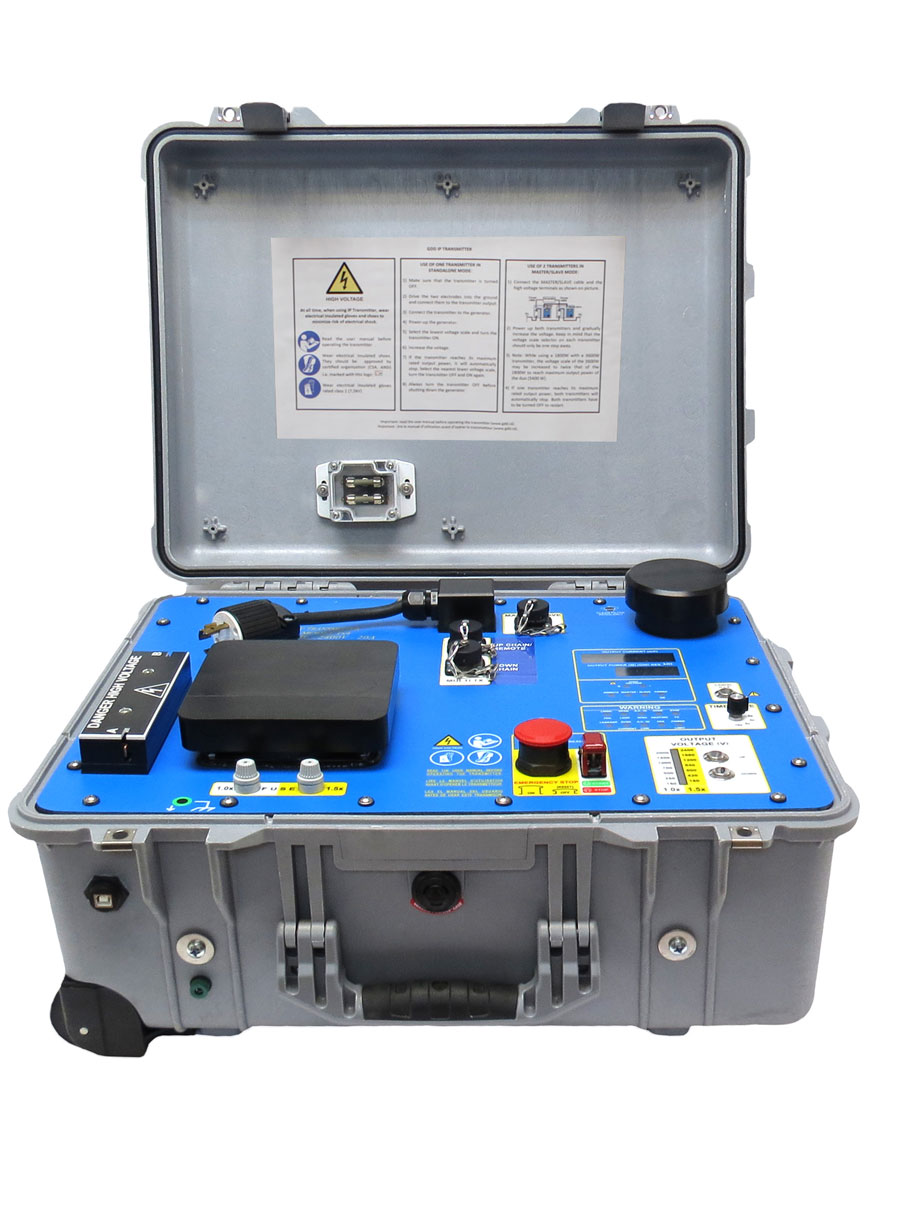

In 2017, GDD has launched its new model: Tx4. This digital IP transmitter gives a much more accurate and stable current reading.

Reliability of GDD IP Transmitters has been highly improved in 2010. Since the beginning of May 2010, GDD has started to introduce new electronic boards that increase the reliability of the latest GDD IP transmitter especially at high voltage (4,800 V). Moreover, GDD now installs a bigger fan and a new vent pipe with dust filter in order to reduce breakdowns caused by moisture and dust accumulated on the boards.

For safety issues, GDD installs a new red push button (ON / OFF Switch) and a proper grounding to improve the insulation of the Pelican case.

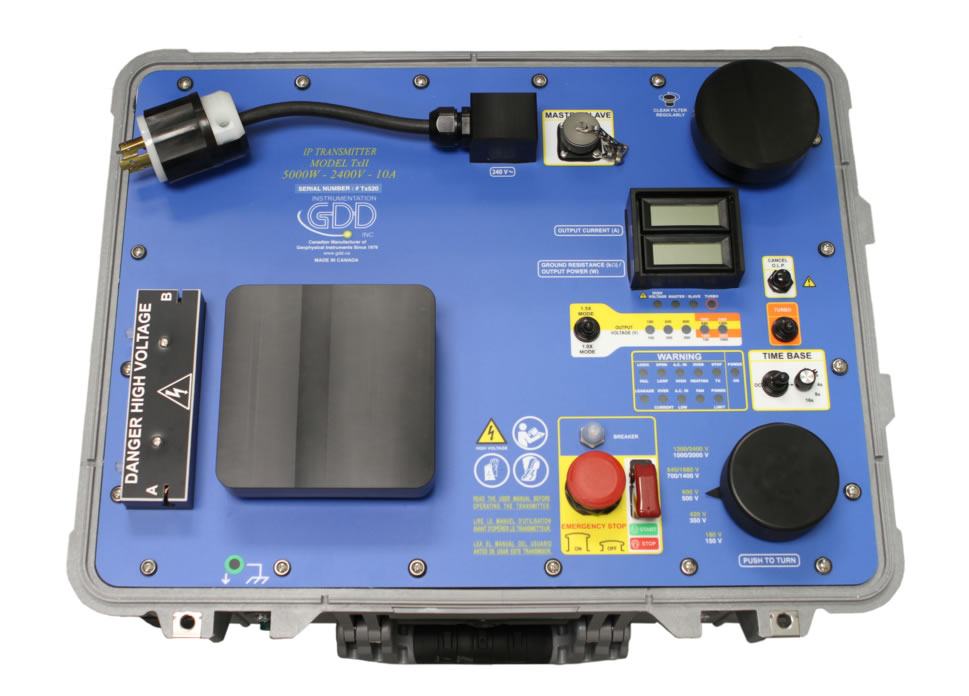

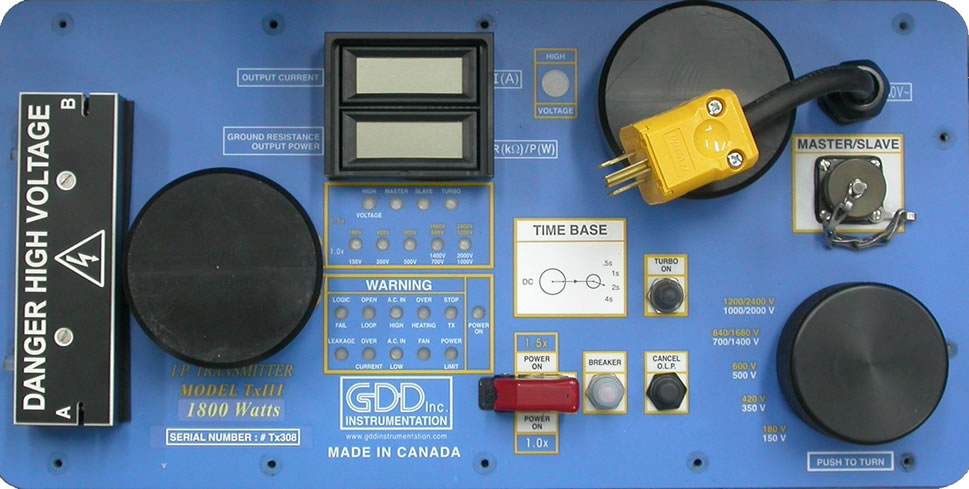

Plus, a new time base of 16 seconds and a new optimized control panel were added to the GDD IP Transmitter in 2014.

All GDD new transmitters have these new features and the old ones can be upgraded on request.
